Rovibec

Rovibec is a Canadian Manufacturer of AGV, Reliable Robot is a dealer and integration partner.

Contact Form

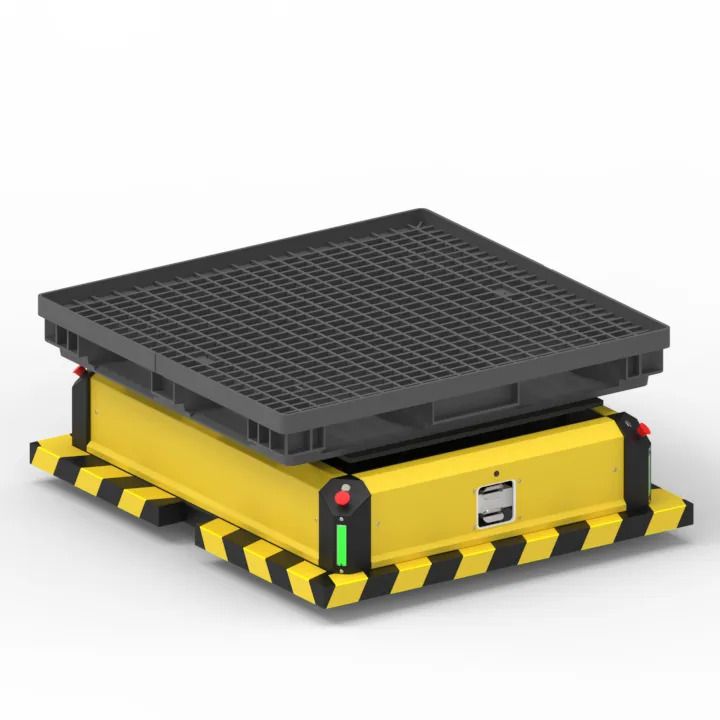

Rangerman

ROBOT SPECIFICATIONS

  • Speed up to 100 ft/min
  • Rangerman RM10 weight = 454 kg
  • Lifting capacity of 1000 kg
  • Navigation via magnetic tape (¼’’ x ½’’, embedded in the floor)
  • Safety: pre-collision sensors, 360° LiDAR, and emergency e-stop buttons
  • Independent network (Server, Wi-Fi)
  • Operation time 16h/24 h
  • 24V 100 Ah Lithium batterie

DIMENSIONS

  • Length > 54 5/8’’ (1387 mm)
  • Width > 46 7/16’’ (1180 mm)
  • Height > 15 ¾’’ (400 mm)
  • Weight > 454 kg (1000 lbs)

FEATURES

  • Handling by load stations
  • Magnetic tape navigation
  • User-friendly web application
  • Quick installation
  • Independent network
  • API connectivity available

Technical Specification Sheet | AGV

PERFORMANCE

  • Battery > Lithium 24V 100 AH
  • Battery life > 16h/24h
  • External charger >
  • Input 100-230 V ac 50-60 Hz/
  • Output 24V-25A
  • Recharge cycle > 2000

COMMUNICATION

  • Wi-Fi > Dual-band wireless AC/G/N/B

ENVIRONMENT

  • Temperature > +5°Cto 40°C
  • Humidity > 10-95%
  • IP Rating > IP21
  • Power > Output 24 V-25A/Input 100/230 V ac 50-60 Hz

SECURITY

  • Lidar > Optical protection 360
  • Bumper > Front and Rear
  • 4 emergency buttons (e-stop)

INDEPENDANT NETWORK

  • Order Management > Prioritization and Execution of Orders for the RM Fleet
  • Battery level control > Automatic recharge
  • Server > Included with RM fleet
  • Power > Output 24 V-25A/ Input 100/230 V ac 50-60 Hz

LOADING

  • Load > 1000 kg (2205 lbs)

1xper day

Test the safety system

1xper year

Engine maintenance

1xper month

  • Clean the lidar (or more frequently depending on dust level)
  • Lubrificate the swivel wheels
  • Clean the machine overall

Other Metrics

Gearbox oil change

First change after 500 h of use. Every 2500 h of operation thereafter.

  • Option 1: Remove the gearbox
  • Option 2: Lift the machine on jack stands or using a lift table
    More restrictive depending on availablespace

Weekly replacement

Depending on wear >tolerance ¼’’ ou ½’’ depending on floor quality.
