Pudu T Series
Meet the T Series Family
Pudu T Series
The PUDU Series includes the Standard, Lifting, Conveyor, Tray, and Towing versions, forming a versatile lineup of transport robots designed for material delivery in industrial settings and heavy-load delivery in commercial environments. Built around a high-load chassis, the series features an open architecture and an onboard touchscreen for easy operation. With a maximum payload of up to 600kg, the robots also support essential IoT capabilities such as elevator control, e-gate passing, and paging function. The series offers extensive software and hardware interfaces, enabling seamless system integration and hardware expansion.
loT-Enabled Connectivity
- Integrated PLC communication for automated material pickup/delivery notifications.
- Supports access control, autonomous elevator integration, and self-networking callers. Modular integration into production workflows without complex system modifications
Flexible & Multi-Functional Applications
- Supports "Human-to-Line," "Line-to-Line," and "Line-to-Human" material transfer modes.
- Compatible with manual/automated loading and unloading.
Enhanced Safety Compliance
Meets ISO 3691-4 standards. Multi-layered safety: LiDAR, vision systems, safety bumpers,s. and in-position sensors to monitor material placement.
Precise & High-Efficiency Material Delivery
- Accuracy: ±0.4 inches (110 mm)
- Capacity: Single-layer load up to 176 lbs (80 kg); expandable to double-layer rollers for 352 lbs (160 kg) total capacity.
Adjustable Dimensions for High Adaptability
- Length: Up to 25.6 inches (650 mm)
- Width: Adjustable from4.7 inches (120 mm) to 21.3 inches (540 mm)
- Height: Adjustable working surface height (12.0-43.3 inches /305-1100 mm)
- Orientation: Roller direction adjustable for multi-angle docking.
Key Features
Superior Mobility
Max. 300kg Load Capacity
Multi-modal Interaction
24/7 Non-stop Operation
Diversified Application Series
Flexible VSLAM+ Positioning
360° Omni-Sense Safety
ISO 3691-4 Standard
VSLAM+ for Rapid Deployment Across Vast Venues
This allows the PUDU T300 to quickly adapt to changes in production layouts without the need for time-consuming reconfiguration or facility remodeling.
IOT Capabilities
Equipped with expansive IoT capabilities, PUDU T300 supports elevator control, e-gate access, and various other smart connectivity solutions. Featuring multiple remote calling functions such as pagers and app-based calling.
24/7 Non-Stop Operations
Equipped with both automatic recharging and battery replacement options, it ensures uninterrupted service to fulfill round-the-clock operational requirements.
Versatile Application Series
The diversified application series significantly enhances the robot's adaptability and versatility, thereby increasing operational efficiency and simplifying procedures, ensuring a more efficient, smooth, and seamless delivery process.
Exceptional Mobility
Boasting an exceptional 60cm path clearance, the T300 ensures agile maneuverability in narrow human-robot cohabited spaces, effortlessly overcoming 20mm thresholds and 35mm grooves.
Product Specifications
| Category | T300 Standard | T300 Tray | T300 Lifting | T300 Towing |
|---|---|---|---|---|
| Machine Weight | 65kg | 103kg | 81kg | 90kg |
| Loading Capacity | 300kg | 300kg | 300kg | 400kg, (200kg Counterweight) |
| Max. Speed | 1.2m/s | 1.2m/s | 1.2m/s | 0.8m/s |
| Path Clearance | ≥60cm | ≥60cm | Determined by load size | Determined by load size |
| Threshold Overcoming Height | 20mm | 20mm | 20mm | 5mm |
| Groove Crossing Width | 35mm | 35mm | 35mm | 35mm |
| Run-time (No Load) | 12h | 12h | 12h | 12h |
| Run-time (Full Load) | 8h | 8h | 8h | 6h |
| Dimensions | 835mm * 500mm * 1350mm | 835mm * 500mm * 1350mm | 835mm * 500mm * 1350mm | 835mm * 500mm * 1350mm |
| Charging Time | 2h（0% to 90%） | 2h（0% to 90%） | 2h（0% to 90%） | 2h（0% to 90%） |
| Navigation Methods | VSLAM & Lidar SLAM | VSLAM & Lidar SLAM | VSLAM & Lidar SLAM | VSLAM & Lidar SLAM |
Accessories
Pudu T300 Lift
- Up to 300 kg payload capacity
- Integrated electric lifting platform for ergonomic material transfer
- Autonomous transport of pallets, totes, parts, and supplies
- Adjustable lift height for seamless handoff to workstations, carts, and equipment
- Elevator, door, gate, and paging system integration
- Intuitive touchscreen operation
- Safe navigation in dynamic industrial environments
- Flexible integration with existing workflows
Pudu T300 Static
- Autonomous transport of materials, parts, tools, and supplies
- Elevator, door, gate, and paging system integration
- Intuitive touchscreen operation
- Safe navigation in dynamic industrial environments
- Flexible integration with existing workflows

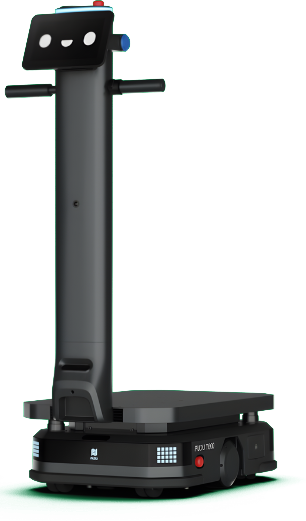

Pudu T600
- Up to 600 kg payload capacity
- Autonomous transport of heavy materials, equipment, and supplies
- Integrated touchscreen for simple operation
- Ergonomic handle with power-assist mode
- Quick-access controls for efficient user interaction
- High-visibility front status indicators
- Safe navigation in dynamic industrial environments
- Flexible integration with existing workflows
PUDU T600 Underride
- Up to 600 kg payload capacity
- Autonomous pickup and transport of carts, trolleys, and racks
- Integrated underride lifting mechanism
- Ideal for point-to-point material movement
- Supports continuous material flow between workstations
- Integrated touchscreen for simple operation
- Safe navigation in dynamic industrial environments
- Flexible integration with existing workflows and facility infrastructure
