FJD FR4000
MAP BEYOND LIMITS, MOW AS YOU WISH
Powered by industrial RTK technology and a smart vision system, the FJD FR4000 robotic lawn mower defines virtual boundaries and ensures centimeter-level accuracy in positioning, eliminating the need for wires.
Industrial RTK Technology
No Perimeter Wires
Mow Up to 10,000m² (2.47 acre)
Max Slope Up to 33° (65%)
Smart Vision System
Route Planning and Auto-recharging
Multi-zone and No-go zone Management

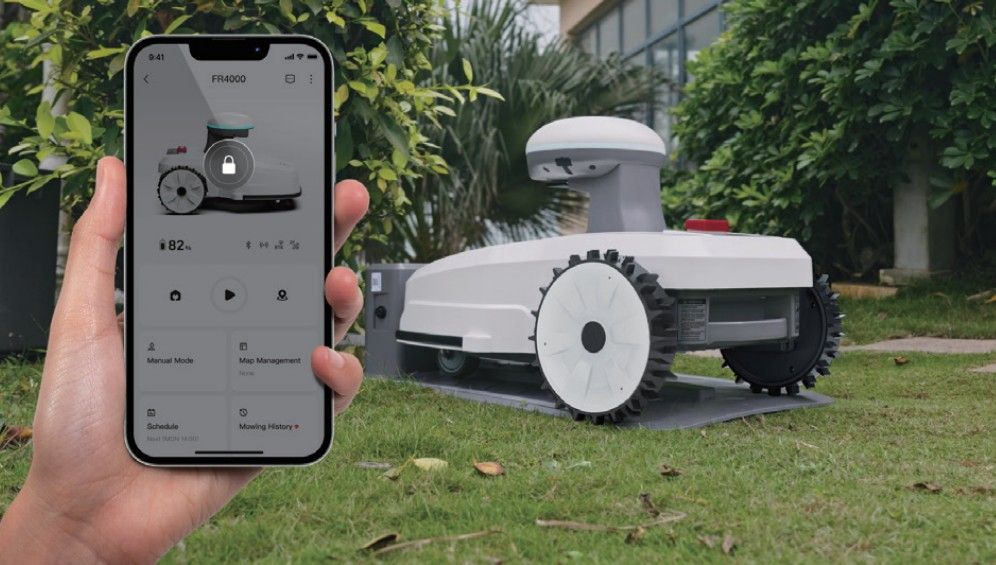

App Control and OTA Updates
Enterprise AI-Powered Robotic Mower:
Conquer Mowing Task Over 10,000㎡ Effortlessly
Stand Out in Performance
Max Slope 33° (65%) to Handle Tricky Terrains at Ease
Conquer steep slopes with an impressive 33° climbing ability,
handling inclines of up to 65% effortlessly.

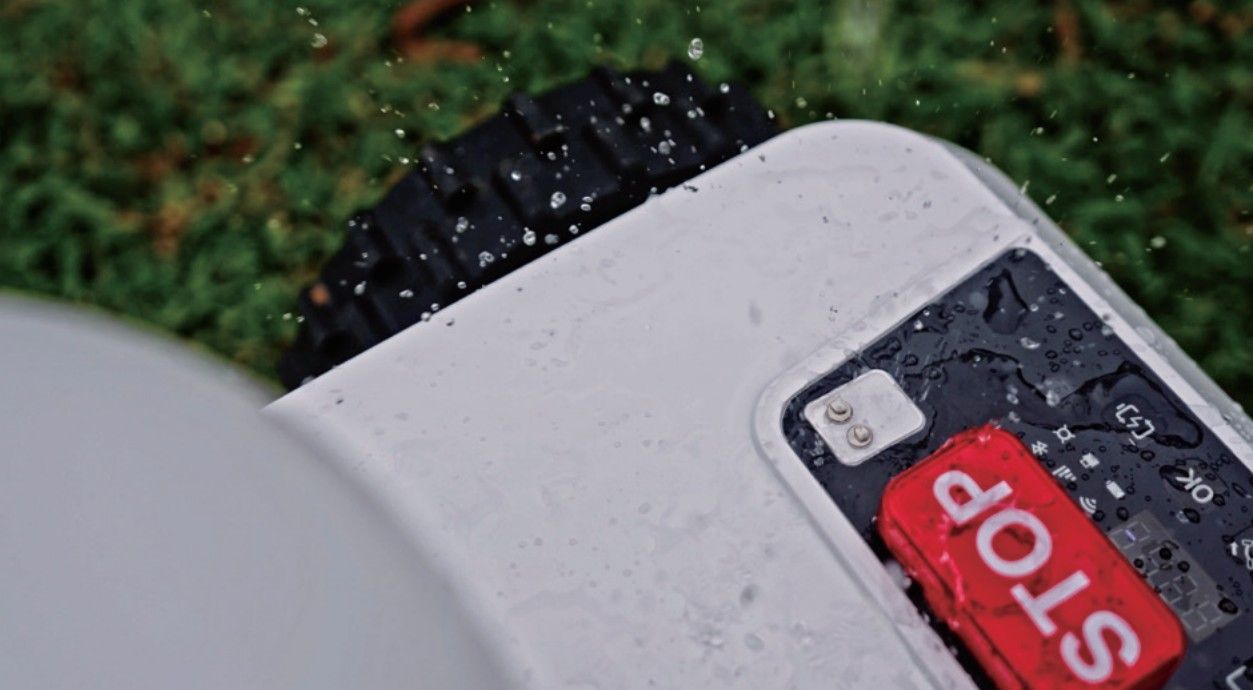

Better protection with a built-in rain sensor and IPX5 waterproof
Design with a rain sensor to pause mowing and guide the mower back during rainfall, and build with IPX5 waterproof to protect the mower from water damage.
Security system for anti-theft
Come with a combination of PIN access, alarm features, charging station pairing, and GPS theft tracking to provide robust security.

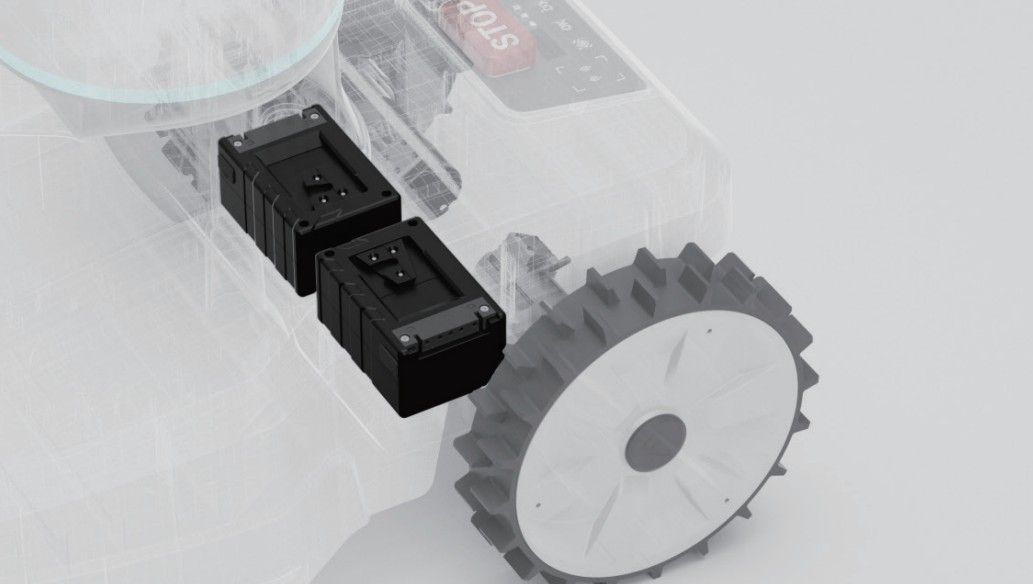

190Wh capacity for long-lasting uses
Enjoy up to 180 minutes of mowing time per full charge, maximizing productivity for uninterrupted lawn care.

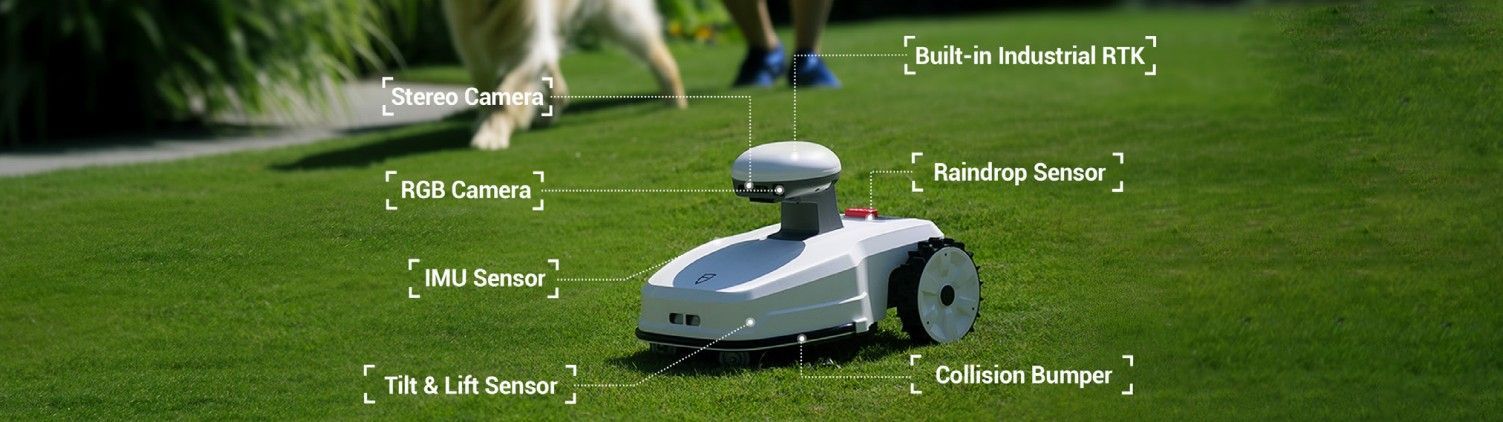

Equipped With Multiple Sensors: Eliminate Potential Mowing Risk
The FR4000 lawn mower comes equipped with an array of intelligent sensors, to ensure safety and efficiency during operation, providing a worry-free mowing experience. Designed for commercial use, it delivers superior protection for turf and property, a wise investment for turf business owners.
Specifications
Capacity
Mowing Ability
Up to 10,000㎡(Within 3 days)
Boundary type
Virtual boundaries (No perimeter wire)
Net weight
13.3 kg
Dimension
645 mm × 444 mm × 420 mm / 25.4 in × 17.5 in × 16.5 in
Max climbing ability
33° (65%)
Max multi-zone management
Supported
No-go zone management
Supported
Engine
Rear-wheel-drive
Rain sensor
Supported
Suggested working temperature
0-55 °C
Waterproof level (mower, charging station, and RTK reference station)
IPX5, IP65, IP67
Positioning & Navigation
Industrial RTK & enhanced vision
Supported
Radio RTK mode & network RTK mode
Supported
User interface
Keyboard & APP control
Firmware update
APP update through OTA
Connectivity
4G & Wi-Fi & Bluetooth
Cutting System
Cutting width
255 mm / 10 in
Cutting height range
20-60mm
Mowing speed range
0.3–0.5 m/s
Blade speed range
High, middle, and low
Blade type
6 pivoting stainless steel blades
Cutting mode
Parallel stripes with customized angle
Product Safety
Object detection & avoidance system
Stereo camera &
RGB camera & Physical bumper
Lift sensor
Supported
Security System
Account pairing , Alarm
Charging station pairing , GPS theft tracking
Tilt sensor
Supported
Battery & Charging
Dual battery capacity
190 Wh
Battery type
Lithium-ion battery
Charging mode
Automatic & Manual
Auto-recharging
Supported
Mowing time per full charge
180 min
Charging time
120 min
