From Site Capture to Professional Parking Lot Line Marking.

FJD PaintMaster Parking is the world’s first high-pressure parking lot striping robot built around a fully digital workflow. It combines FJD Trion S2 Max Scanner, SiteMind world-model planning, vision-based alignment, and robotic high-pressure striping to support both new layout striping and existing-line repainting. From site capture to final striping, it helps crews reduce manual setup, deploy faster, and deliver more accurate, consistent parking lot markings.

Brochure

Less Labor. Faster Striping.

Autonomous Marking

Follows planned routes to reduce repetitive manual work on parking lot striping jobs.

Fast Site Capture

Use the FJD Trion S2 Max scanner to capture layout data faster and reduce measuring, pre-marking, and repeated checks.

Fleet Management

Coordinate multiple robots across large parking lots and multi-zone projects.

New layouts and repainting

Built for New Layouts and Existing-Line Repainting.

New Layout Striping

Create parking stalls, arrows, access aisles, no-parking zones, and crosswalks from scanned site data.

Existing-Line Repainting

Use AI vision-based alignment to follow faded line edges, centerlines, arrows, numbers, and parking space boundaries with greater consistency.

Common Parking Layouts

Support standard parking lot layouts for different stall plans and site requirements.


*Templates may be required for special symbols or custom markings.

Mostly blank white image with a thin black band along the bottom edge.
Mostly blank white image with a thin pale gray horizontal line near the top and a small dark vertical mark near the center.
Mostly blank white image with a thin light-blue horizontal line near the bottom and a small dark mark in the center.

From Plan to Painted Lines

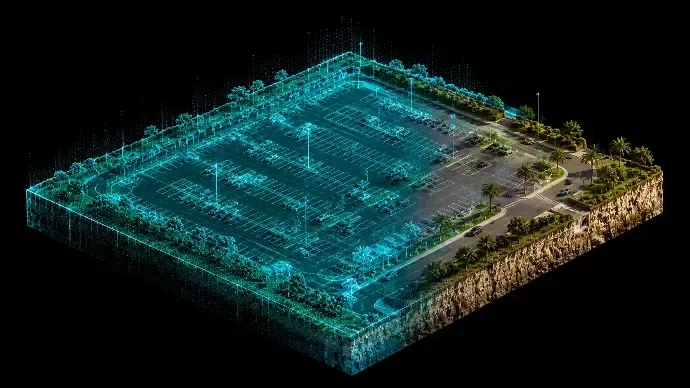

3D point-cloud rendering of a flat site plan in cyan and gold on a black background

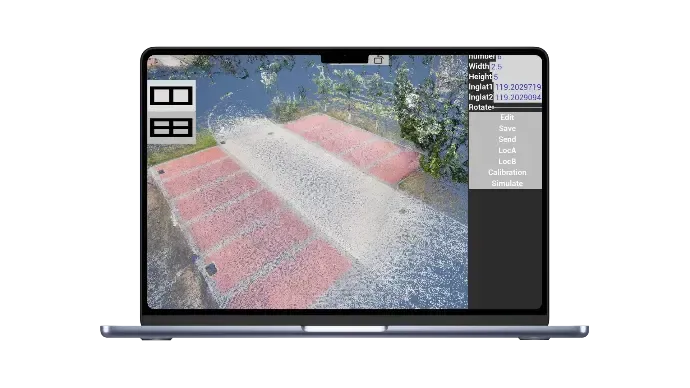

Laptop displaying a 3D editing workspace with a textured road or walkway scene

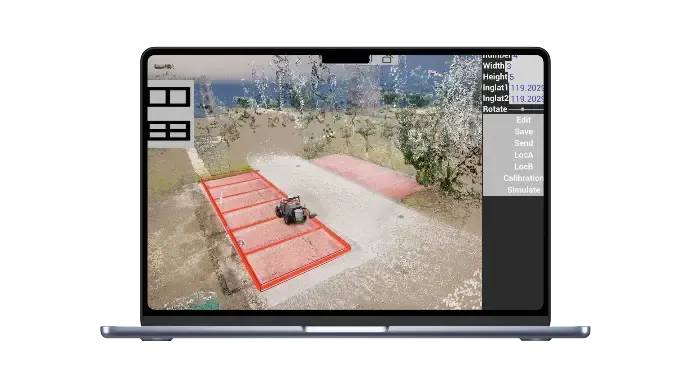

Laptop screen showing a top-down game scene with a small vehicle on a red path in a courtyard.

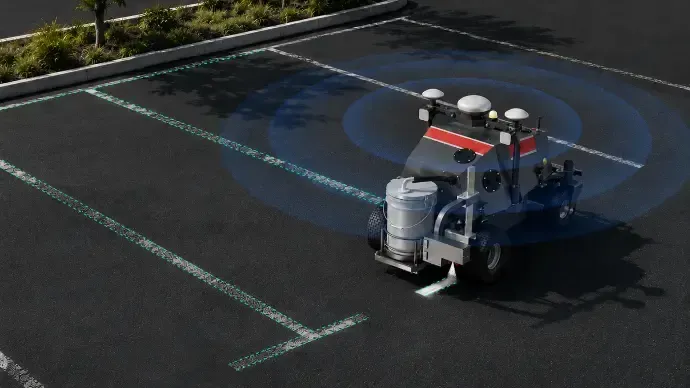

Small robotic vehicle with blue scanning arcs moving across an empty asphalt parking lot
Motorcycle parked in an empty asphalt parking lot with white painted lines.

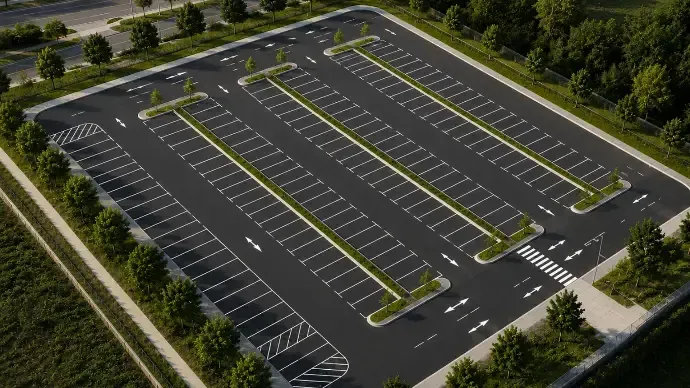

Aerial view of an empty parking lot with yellow-lined spaces and surrounding trees

Safety, Visibility, and ROI

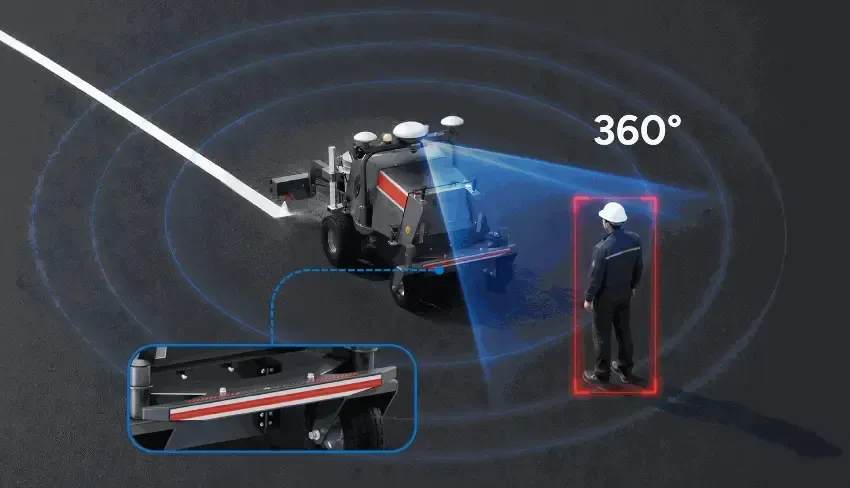

  • 360° warehouse robot scanning a worker, with a red-highlighted view area and camera inset

01

Dual-Layer Safety

360° real-time monitoring and physical collision protection help improve safety in open parking areas.

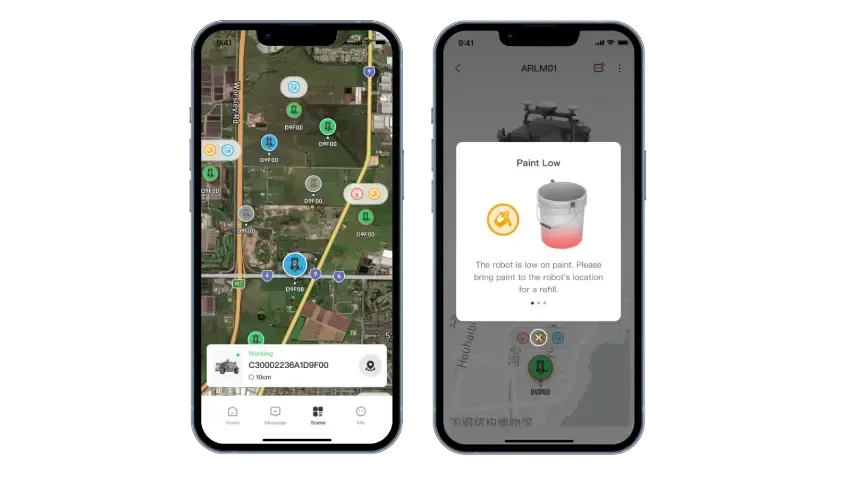

  • Two phones showing a map app; one with a location map, the other with a nearby place details pop-up.

02

Remote Monitoring

Track machine status, striping progress, and alerts in real time through the app.

Application Scenarios

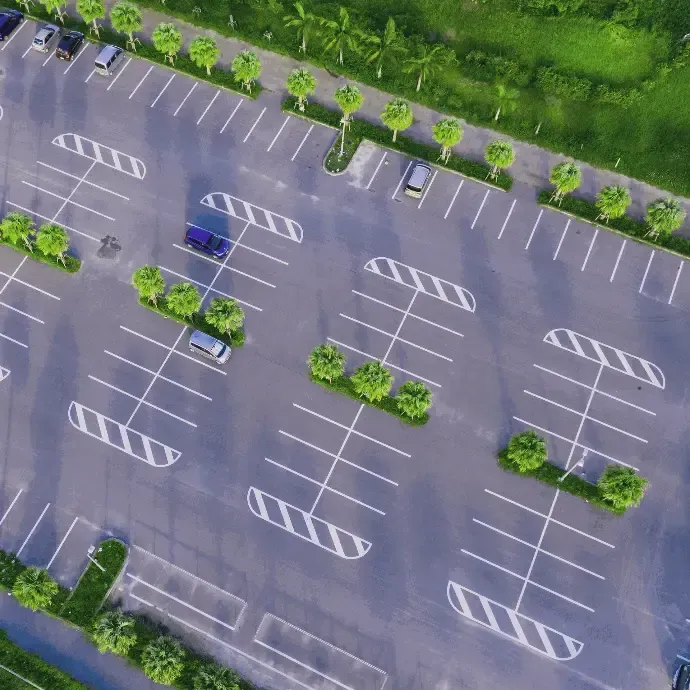

Aerial view of an empty parking lot with white-lined spaces and scattered trees nearby

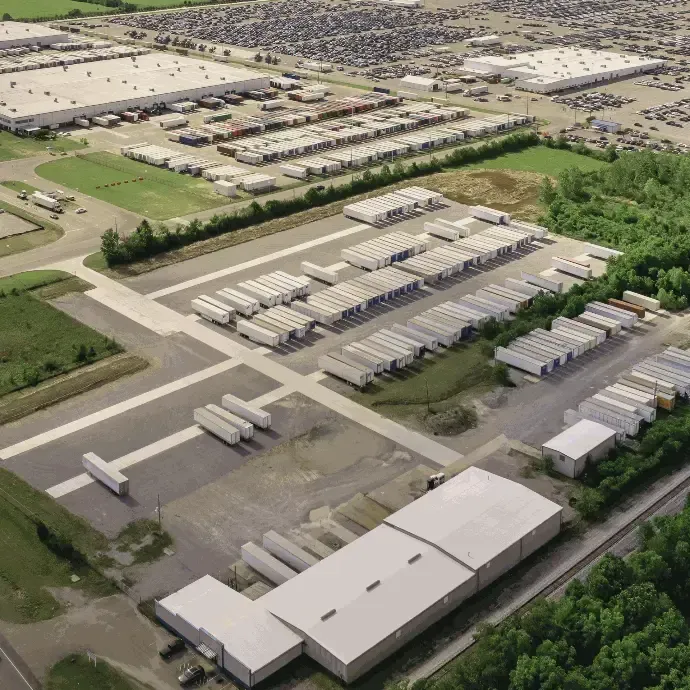

Aerial view of a large industrial warehouse yard with rows of white trailers and buildings near greenery.

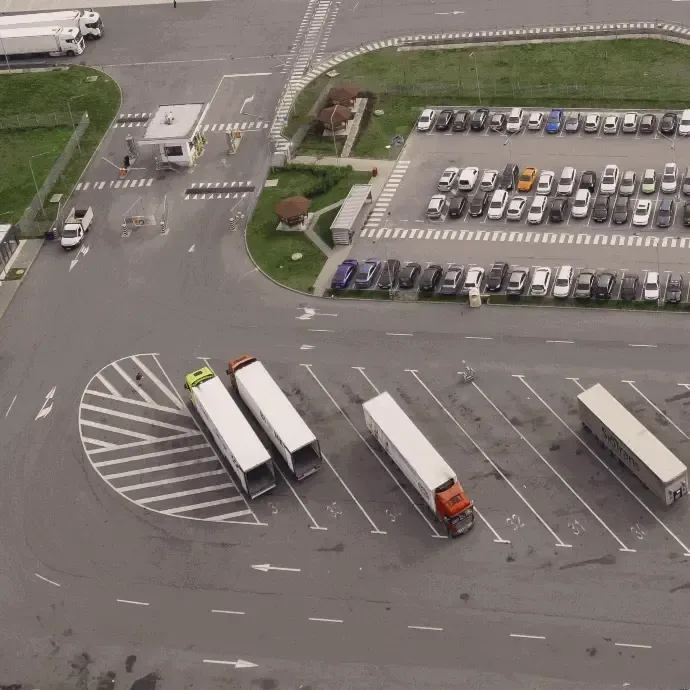

Aerial view of a parking lot with several semi-trucks, cars, and an empty intersection.

Product Specifications

  • Complete Unit

    Weight: 210 kg (463 lb)

    Dimensions: 1700×1120×980mm (66.93× 44.09× 38.58 in.)

    Software Updates: OTA

    Connectivity: 4G, wireless connection

    Water Resistance Rating: IPX4

    Operating Temperature: 5–35 °C

  • Line Marking System

    Line Width Adjustment Range: 10—25 cm (3.94 – 9.84 in.)

    Marking Speed: 1–4 km/h

    Paint Tank Capacity: 19 L (5 gal)

    Maximum Flow Rate: 2 L/min

    Maximum Pressure: 20 MPa

  • Battery & Charging

    Battery Voltage: 48 V

    Battery Capacity: 4 kWh

    Runtime: 6 h

    Charging Time: 4 h

    Quick-Swap Battery: Supported
