Advantages
Lithe Appearance & Flexible Movement
Light Weight & Heavy Load
360°Safety Protection
Environmental Adaptability
Applications
Stacking Storage
Millimeter-level navigation precision enables accurate multi-layer stacking and retrieval, greatly improving space utilization. A lightweight yet high-load design reduces floor load requirements, making it ideal for dense storage in older warehouses or mezzanine areas.
Flat Storage Handling
Compact size and flexible movement enable long-distance, high-frequency handling in flat warehouses, allowing for smooth movement through narrow aisles to maintain a continuous flow of material between workstations. Multi-level safety protection ensures safe, continuous operation in mixed human–robot environments.
Rack Storage
Flexible navigation through rack aisles with precise docking at designated locations ensures accurate pallet alignment, reducing collisions and damage compared with manual forklifts and supporting smart warehouse management.
Automatic Storage/Retrieval System
Seamless interface with lifters, conveyors and other equipment at automated high-bay in/out points transfers goods on time to production or sorting areas, closing the “last meter” gap and forming a complete logistics automation loop.
Specifications

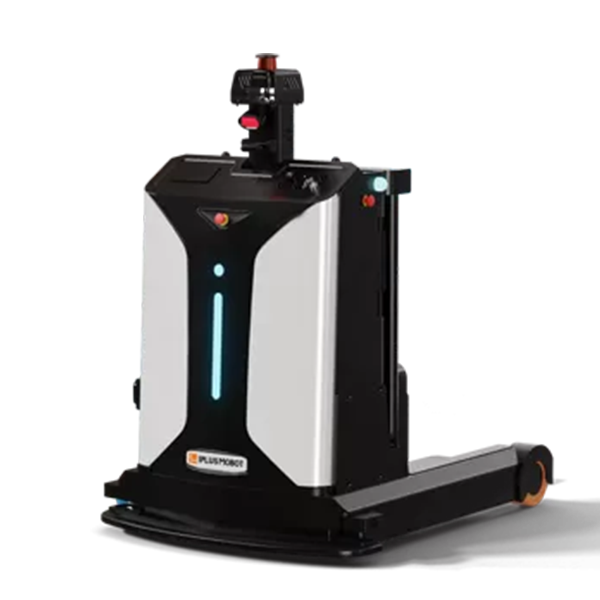

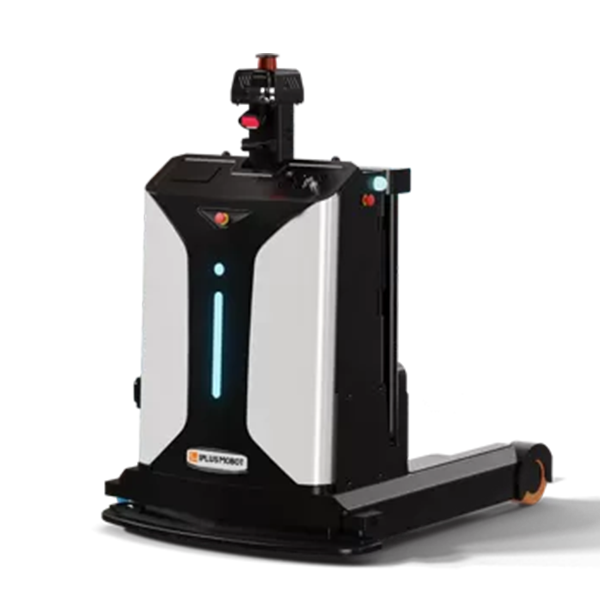

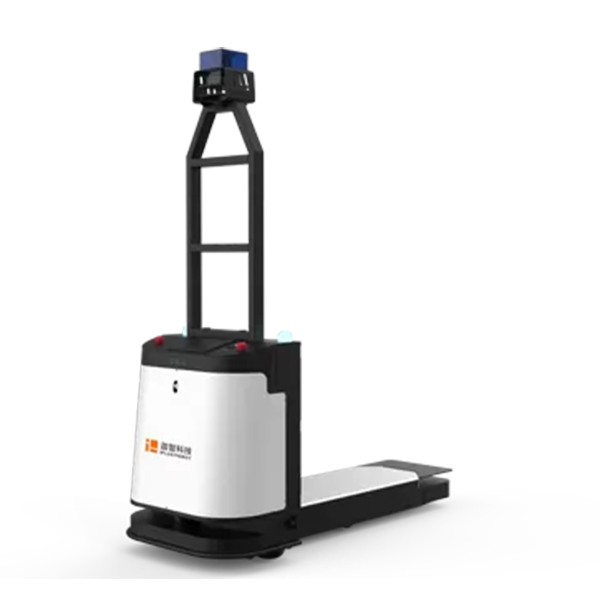

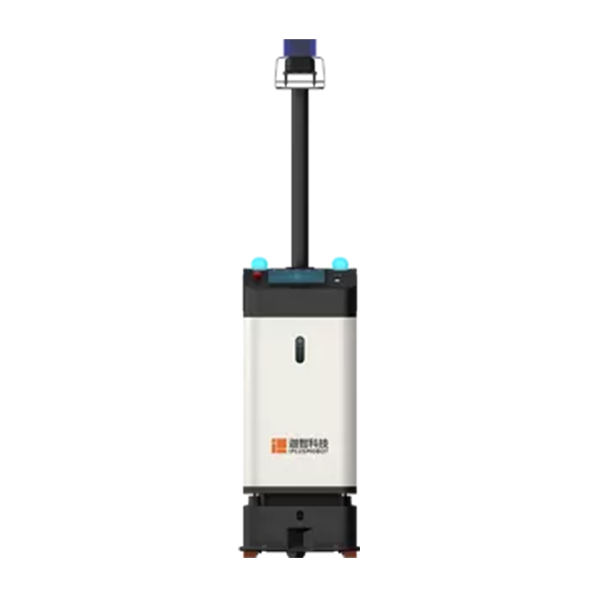

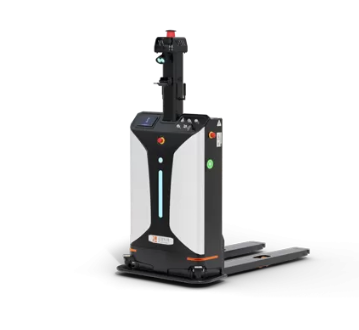

| FOLA DN1416 | FOLA QN1416 | FOLA BN2001 | FOLA SN300 | FOLA SN600 | |
|---|---|---|---|---|---|
| Payload Capacity | 1400 kg | 1400 kg | 2000 kg | 300 kg | 600 kg |
| Dimensions (L*W*H) | 1,705*980*2,036mm 67.7*38.6*80.2in | 2,034*1,200*2,036mm 80.1*47.2*80.2in | 1,608*982*2,036mm 63.3*38.7*90.8in | 1,124*428*1,062mm (standard) 44.3*16.9*41.8in 1,124*428*1,840mm (high version) 44.3*16.9*72.4in | 1,435*600*785mm (standard) 56.9*23.6*30.9in / 1,435*600*1,760mm (high version) 56.9*23.6*69.3in |
| Weight | 680kg | 1,499.1lbs | 1,890kg | 4,166.7lbs | 585kg | 1,829lbs | 185kg | 407.9lbs | 240kg | 529.1lbs |
| Gravity center distance | 600mm | 23.6in | 500mm | 19.7in | 600mm | 23.6in | / | / |
| Maximum speed (no load) | 1.5m/s | 3.4mph | 1.5m/s | 3.4mph | 1.5m/s | 3.4mph | 1.5m/s | 3.4mph | 1.2m/s | 2.7mph |
| Maximum speed (full load) | 1.35m/s | 3mph | 1.35m/s | 3mph | 1.35m/s | 3mph | 1.2m/s | 2.7mph | 1.0m/s | 2.2mph |
| Load center | 600mm | 23.6in | 500mm | 19.7in | 600mm | 23.6in | / | / |
| Pallet identification accuracy | ±10mm | 0.39in | ±10mm | 0.39in | ±10mm | 0.39in | ±10mm | 0.39in | ±10mm | 0.39in |
| Charging time/Runtime | ≤2h / ≥8h | ≤2h / ≥6h | ≤2h / ≥8h | ≤1.5h / ≥8h | ≤1.5h / ≥8h |
| Safety system | Laser obstacle avoidance + 3D camera(Optional) + Sound and light alarm +Bumper + Emergency stop | Laser obstacle avoidance + 3D camera(Optional) + Sound and light alarm +Bumper + Emergency stop | Laser obstacle avoidance + 3D camera(Optional) + Sound and light alarm +Bumper + Emergency stop | Laser obstacle avoidance + 3D camera(Optional) + Sound and light alarm +Bumper + Emergency stop | Laser obstacle avoidance + 3D camera(Optional) + Sound and light alarm +Bumper + Emergency stop |
Laser SLAM + Vision + IMU
Hybrid Navigation
1,400kg | 3,086.5lbs
Payload
±10mm | 0.39in / ±1°
Repeat Position Accuracy
1,600mm | 63in
Lifting Stroke
2,130mm | 90.9in
Aisle Width
8 / 2h
Runtime/Charge Time
