FJD Titan
Robotic Mower
Elite 2-in-1 Turf Care. Without the Elite Price.
Powered by a three-layer guidance system, the FJD Titan serves as a 2-in-1 solution that delivers elite mowing and precise line-marking for golf courses and sports fields.
Unmatched Efficiency & Quality

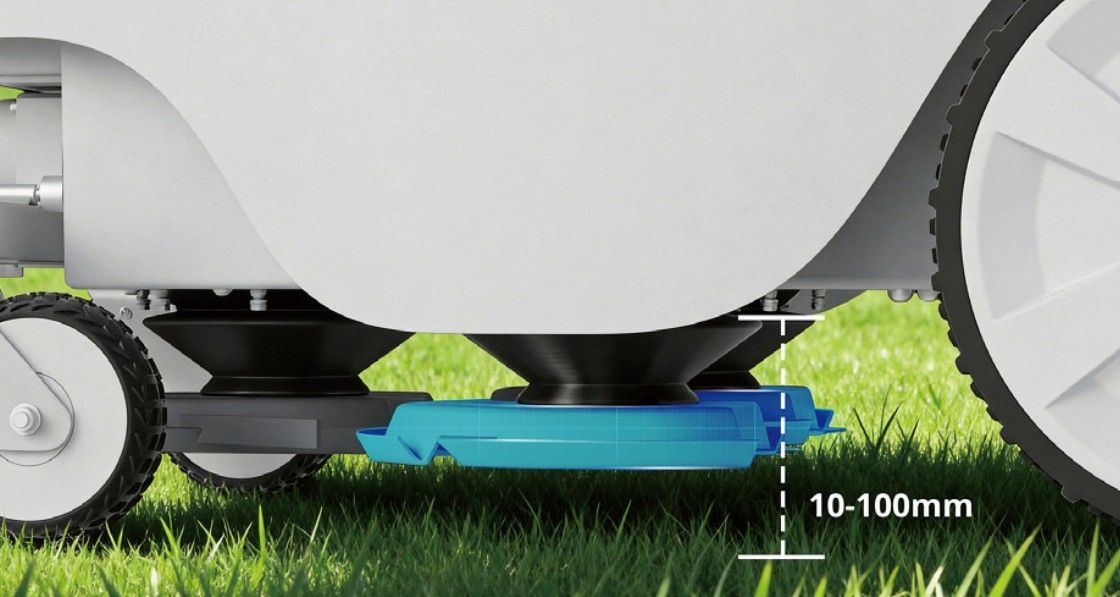

Adjustable Cut Height
Adjust cutting height from 10–100 mm in-app to match turf type and season.

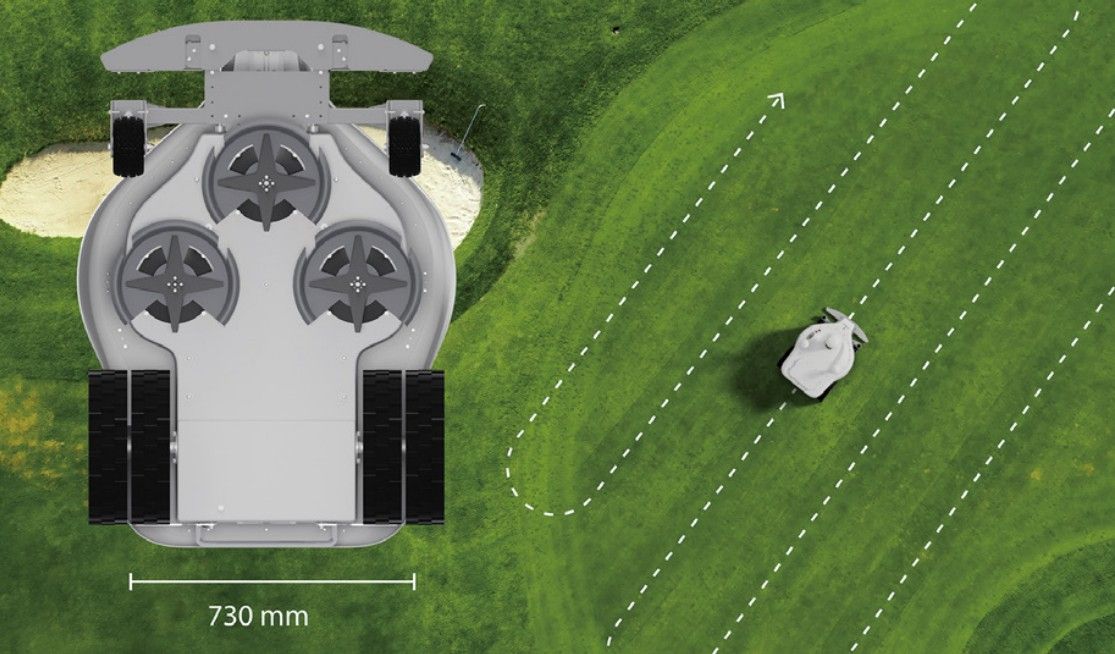

Wide-Cut Productivity
730mm cutting width delivers high daily output—up to 36,000 ㎡ (9 acres) per day.

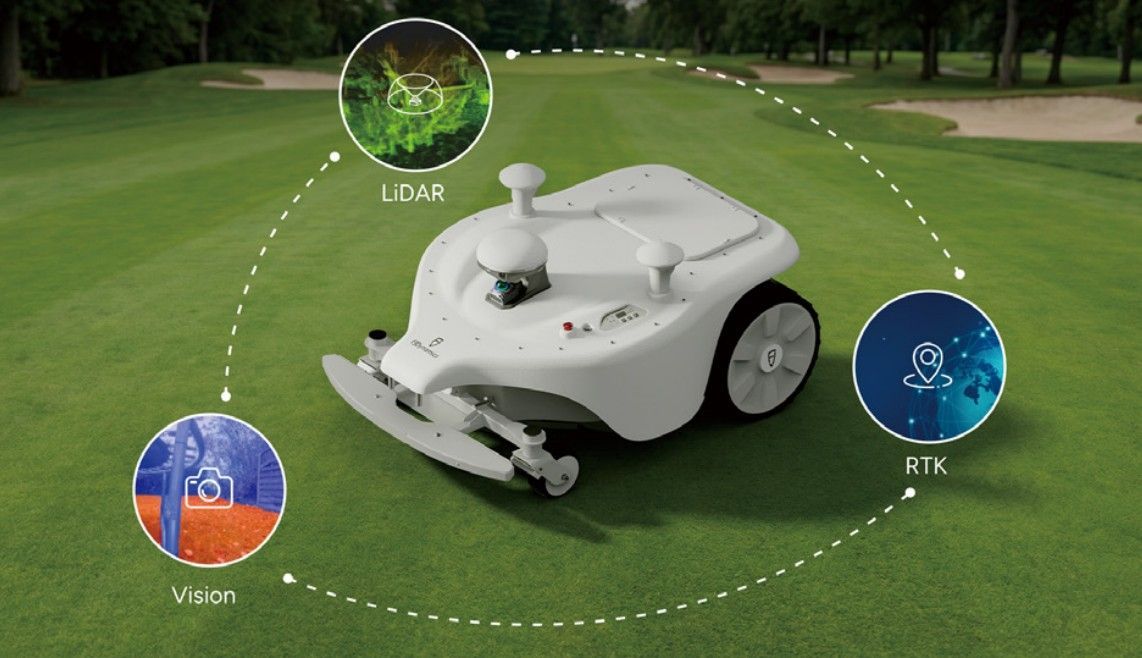

3-Layer Guidance System
Dual-antenna RTK GNSS, LiDAR, and Vision work together for stable positioning and obstacle avoidance.
Unified Operations Management
One Scan, Endless Reusability

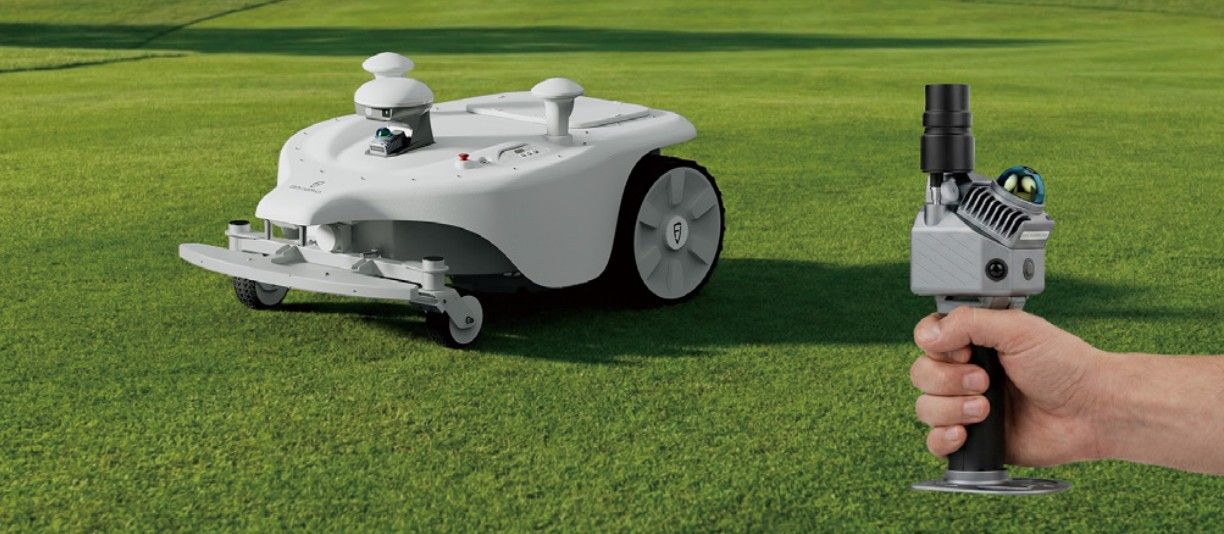

Map in minutes with the FJD Trion P2 LiDAR Scanner—no manual driving. Create a digital asset shared across your entire fleet.
Multi-Field Management
Automated multi-field mowing with seamless transition between task areas.
Specifications
Mowing Capacity
Max mowing area *
72 h Maximum coverage 108,000 ㎡ (26.7 acres)
24 h Maximum coverage 36,000 ㎡ (9 acres)
Max mowing area per charge
18,000 ㎡ (4.5 acres)
Max climbing ability
25° / 46%
Boundary type
Virtual wire
Cutting mode
Customized angle mowing
Overall Dimensions
Weight
122 kg (287 lbs)
Dimensions
1400×1050×650 mm / 55.1×41.3×25.6 in.
Software update
OTA
Connectivity
4G, Wireless Connectivity
Operating temperature
0–55°C (32–131°F)
IP rating
IP64
Cutting System
Cutting height
10–100 mm / 0.4-4 in.
Cutting width
730 mm (260 mm each) / 28.7 in. (10.2 in. each)
Travel speed
0–3.6 km / h (0–2.2 mph)
Cutting disc（pivoting razor blades per disc*
3
Battery & Charging
Charging mode
Manual & automatic
Fast battery swapping
○
Mowing time per charge
480 min
Charging time
120 min
Positioning & Navigation
Positioning
RTK + LiDAR + Vision
NTRIP
●
FJD base station & CORS station
●
Factory Configuration
Complete mower
●
Auto-charging station
●
2 kWh battery
●
High-strength cutting blade
●
FJD Trion V4e Pro
●
FJD base station
●
GPS module
○
Independent anti-theft module
○
