Professional Lawn Management Made Affordable

Elevate your turf maintenance to championship standards with the FJD FRX—the professional robotic lawn mower built for sports fields and golf courses. Featuring a unique suspension cutting disc and front suspension chassis, the FRX effortlessly follows terrain contour, delivering precise and consistent cutting results every time. Whether you ' re maintaining sports fields or golf fairways, the FRX lets you focus on perfection while it handles precision.

Adjustable Cutting Height 10–100mm

96,000 m² in 3 Days (Fast Battery Swapping)

RTK+Vision Navigation

Smart Path Planning

Vision-Based Object Avoidance

Virtual Boundary

Fast Battery Swapping 24x7 Mowing

Fleet Management & Multi-Field Management

PROFESSIONAL MOWING SOLUTION FOR GOLF COURSES

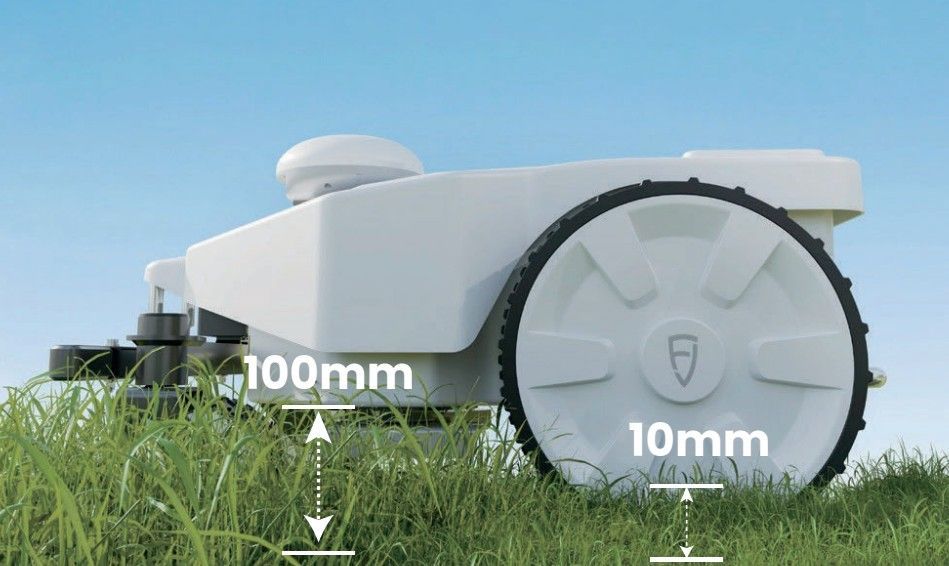

Ultra-Wide Cutting Height Range

Adjustable from 10mm to 100mm — perfect for both fairways and roughs.

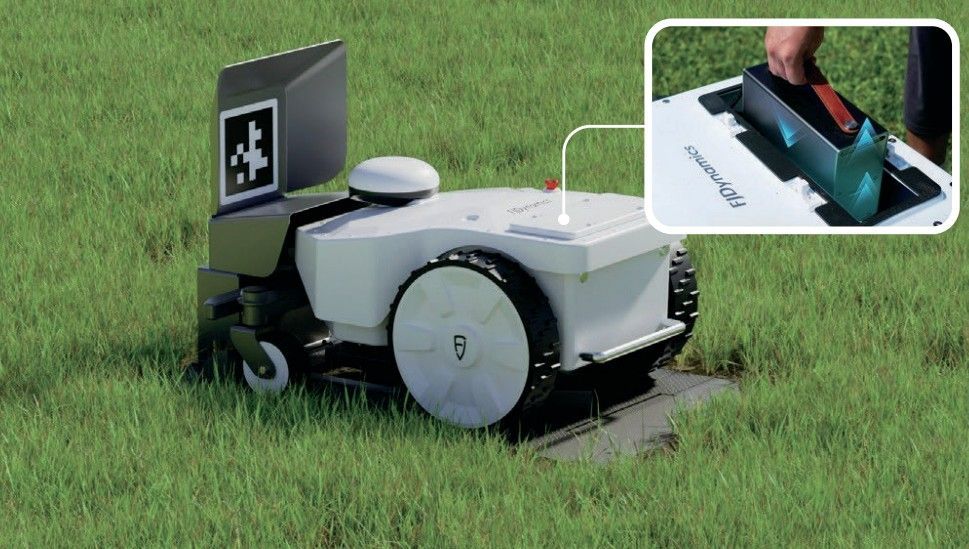

Flexible Charging Options

Fast battery swapping for 24/7 mowing. Auto-charging for fully unmanned operation.

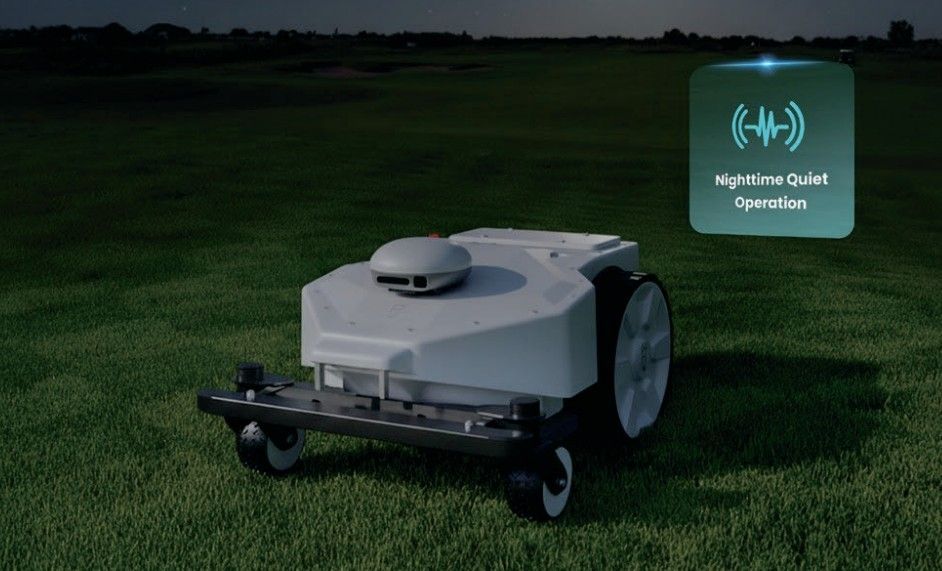

Nighttime Quiet Operation

Allow for silent mowing at night to maximize course use during the daytime, up the course during the day.

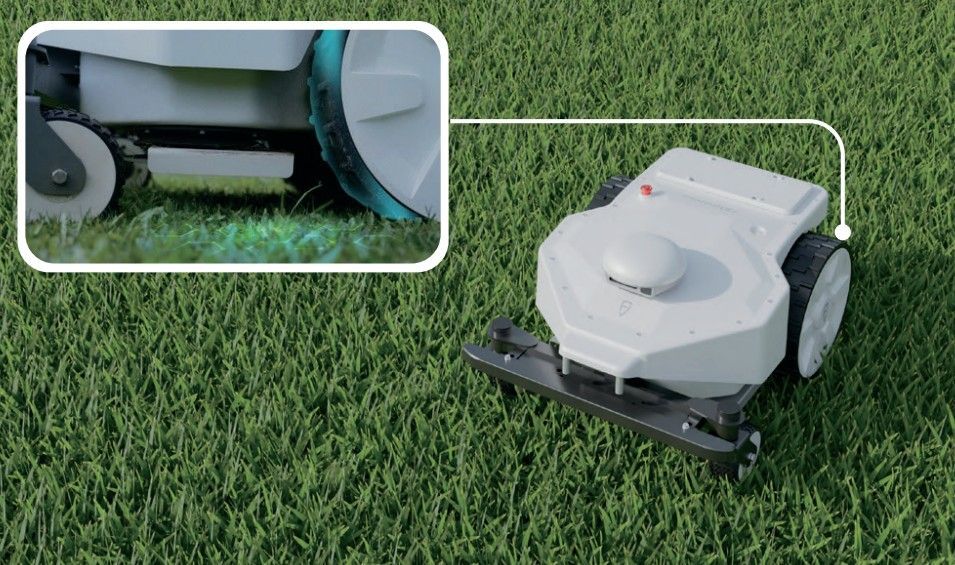

Damage-Free Unmanned Mowing

Treats your turf with care — a lightweight design and wide tires ensure gentle contact, preserving that pristine green.

Specifications

Mowing Capacity

Fast battery swapping mode*

72h Maximum coverage 96,000m² (23.7 acres)

24h Maximum coverage 32,000m² (7.9 acres)

Automatic charging mode

72h Maximum coverage 60,000m² (14.8 acres)

24h Maximum coverage 20,000m² (4.9 acres)

Max mowing area per charge

8000m²

Max climbing ability

30°

Max mowing slope

20°

Front suspension chassis

●

Boundary type

Virtual wire

Cutting mode

Customized angle mowing

Overall Dimensions

Weight

83.7 kg

Dimensions

1278*782*739.9 mm / 50.3*30.8*29.1 in.

Software update

OTA

Connectivity

4G, Wireless connectivity

IP rating

IPX5

Cutting System

Cutting height

10–100 mm / 0.4-4 in.

Cutting width

520 mm / 20.5 in.

Travel speed

0–4 km / h

Cutting disc (pivotingrazorbladesper disc*6)

2

Battery & Charging

Charging mode

Manual & automatic

Fast battery swapping

●

Battery life

320 min

Charging time

240 min

Positioning and Navigation

Positioning

RTK & vision

NTRIP

●

FJD base station & CORS station

●

Factory Configuration

Complete mower

●

Portable charger

○

Auto-charging station

○

1 kWh battery

●

High-strength cutting blade

○

Handheld point maker

○

FJD base station

○

Independent anti-theft module

○
